Home > Electrical Equipment > DC-DC Converters > 12V to 28V DC-DC Boost Converters

1/1

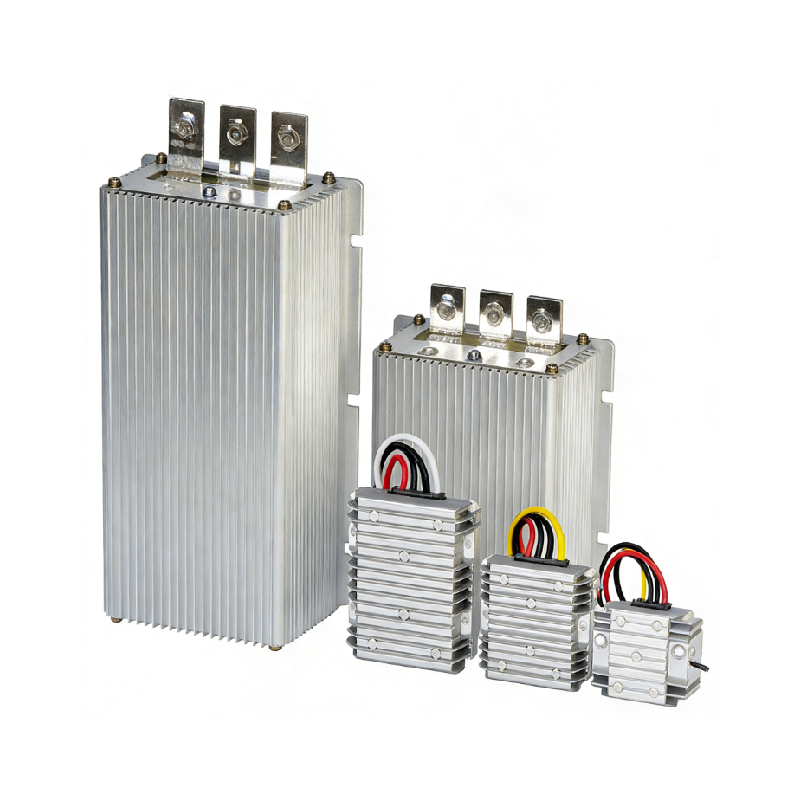

12V to 28V DC-DC Boost Converters, 3A-40A, 84W-1120W

High-efficiency 12V to 28V DC-DC boost converter, IP68 waterproof.
Up to 97% efficiency, full protections, 3A–40A.
Ideal for automotive, marine, industrial, solar and LED power systems.

$62.10

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Input & Output Voltage:

12V to 28V
Output Current & Power:

3A 84W

5A 140W

8A 224W

10A 280W

15A 420W

20A 560W

30A 840W

40A 1120W

Quantity:

1/1

Overview
FAQ

OVERVIEW
GoodProx 12V to 28V DC-DC boost converter provides stable voltage step-up from 12V to 28V for automotive, marine, industrial and solar applications. Covering 3A–40A / 84W–1120W, this IP68 boost converter features up to 97% efficiency, full protections and a rugged sealed design. It is the reliable 12V to 28V step-up converter for mobile and industrial power systems.

FEATURES

Wide Power Range: 3A–40A, 84W–1120W for versatile load demands.
High Efficiency: Up to 97% conversion, low energy loss.
IP68 Waterproof: Dustproof, waterproof, shock-resistant for harsh environments.
Full Protections: Over-voltage, over-current, over-temperature, short-circuit protection.
Stable Output: Voltage regulation ±1%, low ripple & noise.
Wide Temp Range: -40°C to +85°C working temperature.
Cast Aluminum Shell: Rugged, durable, excellent heat dissipation.
Certified Safe: CE, RoHS certified, long warranty.

SPECIFICATION GP-CVT-12S28, 12V to 28V Series

SKU/Model	GP-12S2803	GP-12S2805	GP-12S2808	GP-12S2810	GP-12S2815	GP-12S2820	GP-12S2830	GP-12S2840
Rated Voltage	12V DC
Rated Voltage Range	10-16V DC	10-16V DC	10-16V DC	10-16V DC	10-18V DC	10-16V DC	10-16V DC	10-16V DC
Output Voltage	28V DC
Voltage Regulation	±1%
Output Current	3A	5A	8A	10A	15A	20A	30A	40A
Output Power	84W	140W	224W	280W	420W	560W	840W	1120W
Output Type	Single Phase
Efficiency	95%	94%	94%	94%	95%	96%	96%	97%
Load Regulation	<2%
No Load Loss	51mA	60mA	60mA	60mA	70mA	60mA	60mA	70mA
Ripple & Noise	260mVp-p	160mVp-p	160mVp-p	160mVp-p	200mVp-p	200mVp-p	200mVp-p	240mVp-p
Protections	Over load, Over Voltage and Over temperature protections
Waterproof Level	IP68
Certificates	CE, RoHS
Working Temp.	-40 ~ + 85℃
Weight (kg)	0.12	0.30	0.30	0.30	0.55	1.6	1.6	2.3
Size (mm)	645722	747432	747432	747432	1008039	15012763	15012763	22012763
Warranty	18 months

APPLICATIONS

✔️Industrial

✔️Alternative Energy

✔️Golf Cart

✔️Forklift

✔️Electromotor

✔️Telecommunications

✔️Boat & Yacht

✔️Medical

✔️Dua Battery System

✔️LED Marketplaces and so on.

USAGE NOTE

1. Use within rated input voltage range for 12V to 28V step-up converter.
2. Do not overload the output current or power.
3. Ensure good heat dissipation for high-power models.
4. Follow wiring diagram to avoid short circuit.
5. Keep away from flammable materials during operation.

Why Choose GoodProx GP-CVT-12S28 Boost Converter?
✅ Stable 28V output from 12V input for 12V to 28V DC-DC boost converter.
✅ IP68 waterproof design for outdoor & harsh environment use.
✅ Up to 97% high efficiency saves energy & reduces heat.
✅ Full protections ensure safe long-term operation.
✅ Wide current selection from 3A to 40A fits all needs.
✅ CE & RoHS certified for industrial & vehicle safety.

DC-DC Converter FAQ

What is the difference between a Buck and a Boost converter? +

A Buck converter (Step-down) reduces the input voltage to a lower output voltage.
A Boost converter (Step-up) increases the input voltage to a higher output voltage.

What does "Isolated" vs "Non-Isolated" mean? +

Isolated converters have electrical separation (via a transformer) between input and output, which provides safety and noise immunity.
Non-Isolated converters share a common ground and are typically more efficient and compact.

What is the efficiency of this converter? +

Efficiency is the ratio of output power to input power. High-efficiency converters (e.g., >95%) minimize power loss as heat, which is crucial for battery-powered applications and thermal management.

Why is my converter overheating? +

Possible causes:

Exceeding the rated output load → Reduce power draw.
Poor ventilation → Ensure airflow around the unit.
Faulty wiring → Check connections.

The output voltage is unstable. What should I do? +

Try:

Check input voltage (must be in input voltage range).
Verify load is within output limit.
Test with a multimeter to confirm output.

Can I use this with solar panels? +

Yes, DC-DC converters are commonly used in solar systems to match the panel voltage to the battery or load voltage. Ensure the input voltage range covers your solar panel's maximum power point (MPP).
