Home > Electrical Equipment > DC-DC Converters > 24V to 48V DC-DC Boost Converters

1/1

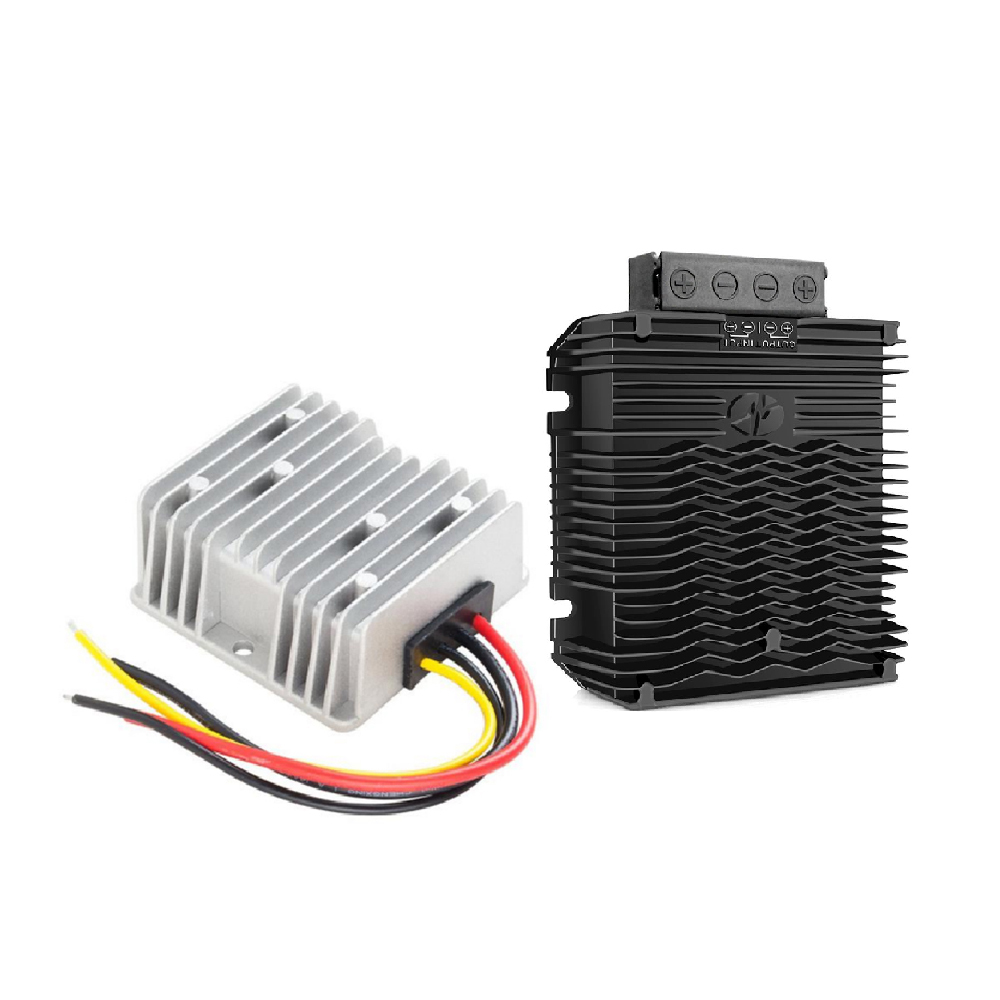

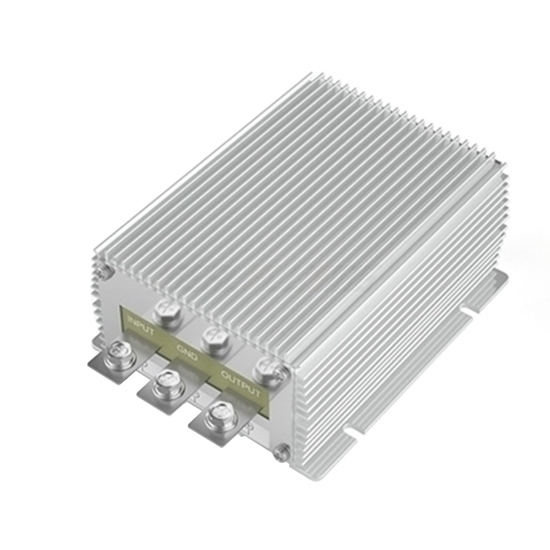

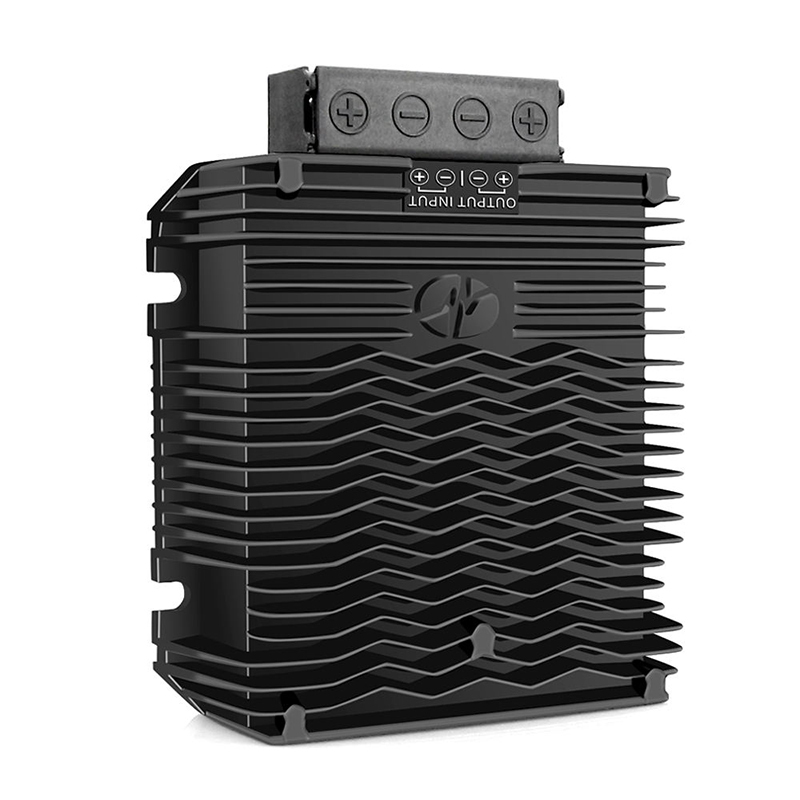

24V to 48V DC-DC Boost Converters, 3A~50A, 144W~2400W

Industrial 24V to 48V DC-DC converter.
Up to 2400W high output power.
Simple design, clear interface, easy to install and integrate quickly.

$88.79

SAVE $10.00 WITH PURCHASE OVER 1 UNITS

Get it

AUTO10

Received successfully

Coupon Code

Please select the information you want X

Input & Output Voltage:

24V to 48V
Output Current & Power:

3A 144W

5A 240W

10A 480W

15A 720W

20A 960W

32A 1500W

42A 2000W

50A 2400W

Quantity:

1/1

Overview
FAQ

FEATURES

Stable Boost: Converts 24V with wide input range to a precise 48V output.
High Efficiency: Utilizes synchronous rectification technology with peak efficiency up to 96%, saving energy.
Robust & Durable: Features a cast aluminum enclosure with IP68 full-sealed protection, resistant to dust, water, and impact.
Safe & Reliable: Equipped with comprehensive self-recovery protection circuits against over-voltage, over-current, over-temperature, and short circuits.

SPECIFICATION GP-CVT-24S48, 24V to 48V Series

SKU/Model	GP-24S4803	GP-24S4805	GP-24S4810	GP-24S4815	GP-24S4820	GP-24S4832	GP-24S4842	GP-24S4850
Rated Voltage	24V DC
Rated Voltage Range	18-35V DC	18-35V DC	18-35V DC	18-35V DC	20-35V DC	20-35V DC	18-36V DC	18-36V DC
Output Voltage	48V DC
Voltage Regulation	±1%
Output Current	3A	5A	10A	15A	20A	32A	42A	50A
Output Power	144W	240W	480W	720W	960W	1500W	2000W	2400W
Output Type	Single Phase
Efficiency	95%	94%	97%	97%	97%	97%	98%	98%
Load Regulation	<2%
No Load Loss	40mA	40mA	70mA	70mA	60mA	60mA	300mA	300mA
Ripple & Noise	240mVp-p	240mVp-p	170mVp-p	170mVp-p	280mVp-p	280mVp-p	181-600mVp-p	200-600mVp-p
Protections	Over load, Over Voltage and Over temperature protections
Waterproof Level	IP68
Certificates	CE, RoHS
Working Temp.	-40 ~ + 85℃
Weight (kg)	0.30	0.30	0.55	0.55	1.6	1.6	1.2	1.2
Size (mm)	747432	747432	1008039	1008039	15012763	15012763	14012042.5	14012042.5

APPLICATIONS

✔️Industrial

✔️Alternative Energy

✔️Golf Cart

✔️Forklift

✔️Electromotor

✔️Telecommunications

✔️Boat & Yacht

✔️Medical

✔️Dua Battery System

✔️LED Marketplaces and so on.

DC-DC Converter FAQ

What is the difference between a Buck and a Boost converter? +

A Buck converter (Step-down) reduces the input voltage to a lower output voltage.
A Boost converter (Step-up) increases the input voltage to a higher output voltage.

What does "Isolated" vs "Non-Isolated" mean? +

Isolated converters have electrical separation (via a transformer) between input and output, which provides safety and noise immunity.
Non-Isolated converters share a common ground and are typically more efficient and compact.

What is the efficiency of this converter? +

Efficiency is the ratio of output power to input power. High-efficiency converters (e.g., >95%) minimize power loss as heat, which is crucial for battery-powered applications and thermal management.

Why is my converter overheating? +

Possible causes:

Exceeding the rated output load → Reduce power draw.
Poor ventilation → Ensure airflow around the unit.
Faulty wiring → Check connections.

The output voltage is unstable. What should I do? +

Try:

Check input voltage (must be in input voltage range).
Verify load is within output limit.
Test with a multimeter to confirm output.

Can I use this with solar panels? +

Yes, DC-DC converters are commonly used in solar systems to match the panel voltage to the battery or load voltage. Ensure the input voltage range covers your solar panel's maximum power point (MPP).
